Amerex N_S 32-160/002

Amarex NS 032-160/002 ULG-160, Ident number 39190481
Amarex NS without explosion protection

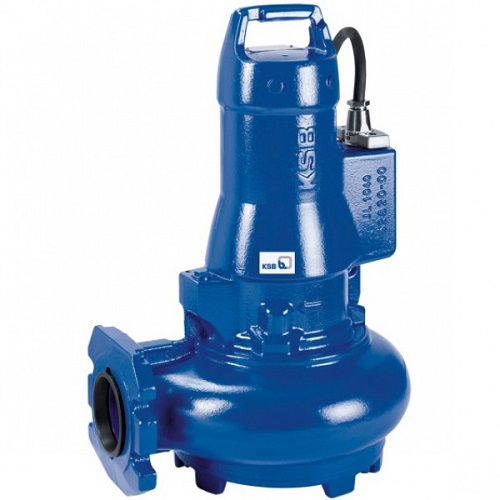

KSB Amarex NS submersible motor pump for waste water applications, made of grey cast iron, in vertical, close-coupled, floodable design for wet installation, single-stage, with three phase motor to VDE Standards, protected against overheating by a temperature limiter, power cable, with absolutely water-tight cable entry.

Pump set: Without installation kit
Impeller type: S
Cutter: Yes

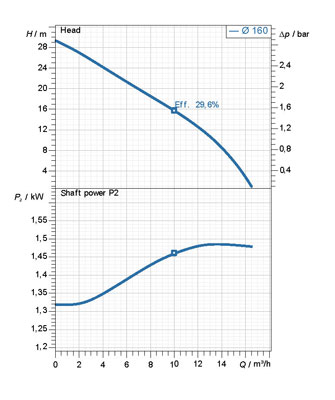

Operating data
Fluid handled: Water
Flow rate: min - 3 m3/hr, max - 15 m3/hr
Head: max - 25.5mts, min - 6mts
Operating temperature: 20 °C

Drive
Nominal voltage: 3~400 V
Nominal frequency: 50 Hz
Starting method: DOL
Enclosure: IP68 to EN 60529 / IEC 529
Explosion protection: No
Max. fluid temperature: 55 °C
Thermal motor protection: Bimetal
Nominal power P1: 2,67 kW Nominal power P2: 1,5 kW Nominal current: 3,37 A
Speed: 2.850 1/min
Cable length: 10 m

Materials
Pump casing: EN-GJL-250
Intermediate casing: EN-GJL-250
Impeller: EN-GJL-250
Pump shaft / motor shaft: 1.4021+QT800
Cutter: 1.2080+A (K100
Sealing elements: Nitrile butadiene rubber (NBR)
Coating: Two-component epoxy resin, RAL5002
Shaft seal: Double mechanical seal
(bi-directional)
Pump end: SiC/SiC mechanical seal
Motor end: Carbon/Al2O3 mechanical seal
Dimensions and connections
Impeller diameter: 160 mm Free passage: 6 mm
Nominal diameter, discharge side: PN 16
Suction nominal size: DN 32

Purchase order information
Approx. net weight: 29 kg
Make: KSB
Type series: Amarex N
Size: 032-160S
Material number: 39190481
